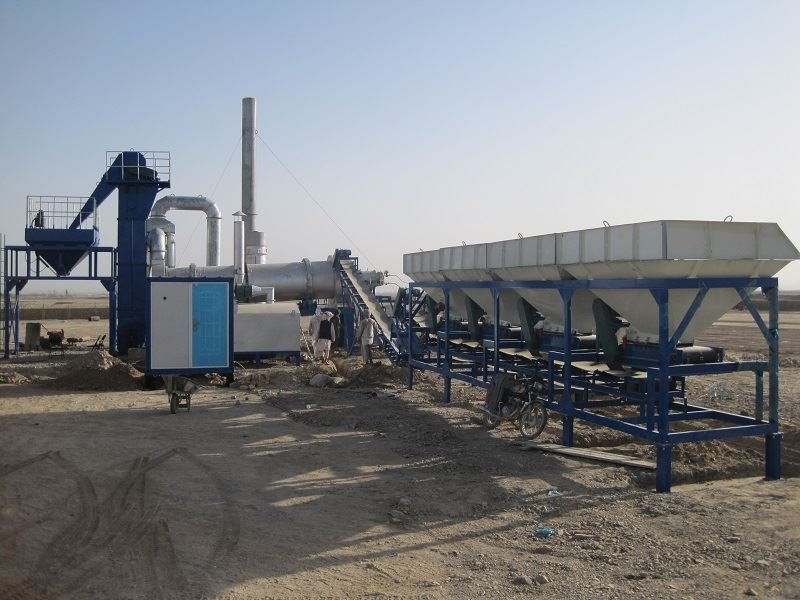

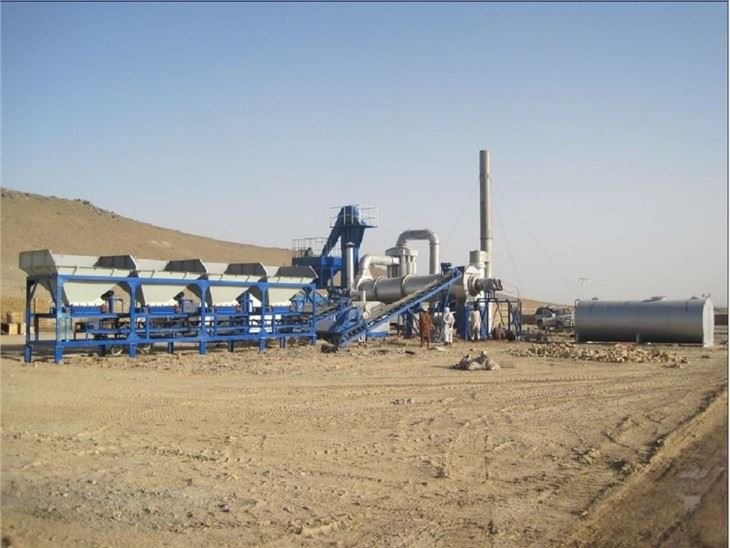

DHB60 Drum Asphalt Mixing Plant

Categories AMP Series, Drum Asphalt Mixing Plant Tags Continuous type, Daynn, Drum Asphalt Mixing Plant

其他信息

Model & Capacity	Model: DHB60 [60T/H]
FOB Price	$60,000.00 – $120,000.00 / Set
Price Range	Depend on the different specifications.
Payment Term	30% – 50% T/T in advance, 50% – 70% balance by TT / LC before shipment.
Delivery time	It will be shipped within 30 days after receiving the deposit. Negotiable for Busy Season or Large Qty.
Warranty	12 months after shipment or 2000 working hours, whichever occurs first.
Transportation	Inquiry us right now to get the complete transportation plan.

Product Details

Model	DHB60
Rated Capacity (t/h)	60
Cold Feed Bin (m³)	4 × 6.5
Drying Drum (L × W)	1.5 × 6.5
Overall Dimensions (L × W × H)	33 × 19 × 12
Installed Power (kW)	99

Drum Type Hot Mix Plant is easy to operate and can continuously produce asphalt concrete. The control system has high precision, strong reliability, and stable performance; it occupies less land, is fast in installation, convenient in transportation, and can be reproduced in a short period of time after transfer.

Performance characteristics of DHB60 Drum Type Hot Mix Plant

Cold material supply system

Composition: Four belt feeders and a set of conveyor belt conveyors.

Parameters: bucket capacity: 4×4m3; bucket width: 2.6m; loading height: 2.7m;

Motor power: 4×1.5kW (electromagnetic speed regulation); warehouse vibrator: 0.25kW;

The aggregate belt conveyor has a bandwidth of 500mm; the motor power is 4kW, and the conveying capacity is 60t/h.

Features: The silo is equipped with a screen and the feeder motor adopts frequency conversion speed control.

Intermediate filter screen

Form: Inclined gravity flow.

Features: The middle filter screen has no vibration, and there is little dust overflow. It can prevent unqualified materials from entering the drying drum and elevator, saving energy, and preventing blockage of large stones.

———-

Inclined belt feeder

Parameters: Bandwidth: 500mm; Motor power: 4kW.

———

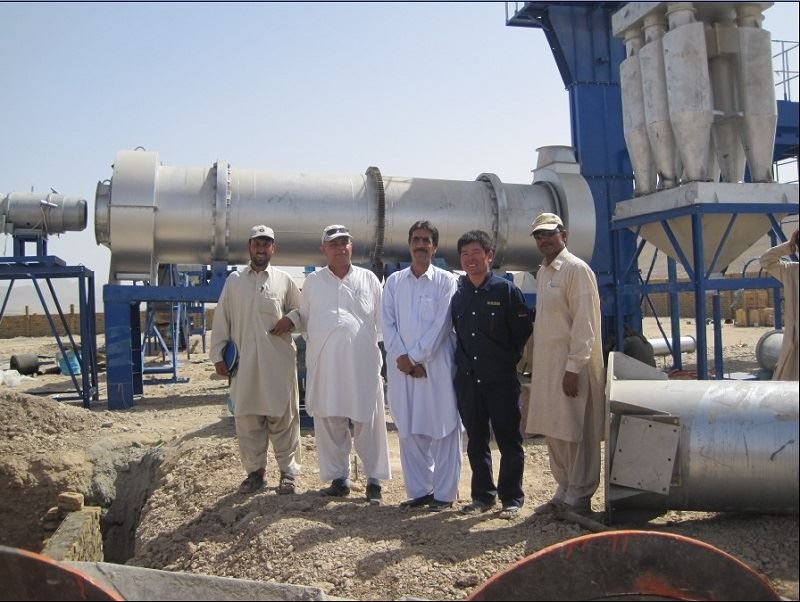

Drying drum

Parameters: Diameter: 1.5m; Length: 6.5m; Motor power: 22kW.

Features: The drying drum adopts gear and ring gear meshing transmission, and the transmission is stable.

——–

Hoist

Parameters and characteristics: Single-row plate chain is used; the hopper is reinforced with a 65Mn steel plate; the power of the hoist is 5.5 kW.

——–

Dust removal system

Parameters and features: Six-cylinder cyclone is used to remove dust; the power of the induced draft fan motor is 30kW.

———

Finished product silo

Parameters and features: the storage bin volume is 3.5m3, the upper feeding level sensing device, the discharge port is equipped with a temperature sensor; the door opening mechanism uses a hydraulic cylinder, the hydraulic pump power is 2.2kW; the material receiving height is 2.8m.

———-

Asphalt tank and asphalt pipeline

Composition: 1 asphalt tank.

Parameters: Volume: 10m3; motor power of induced draft fan: 4kW; 1 asphalt pump;

Frequency conversion speed motor: 3kW.

Features: Burn co control or wood, use the spiral hot air pipe to heat the asphalt.

———–

system

Composition: One control room, one electrical console, and the cables needed to reach the equipment.

Features of Drum Type Hot Mix Plant:

(1) The external dimension of the control room is 2.2m×2.28m×2.5m imitating a container structure, the wall is made of color steel plate, double-layer insulation, color steel doors, and windows; split air conditioner; beautiful appearance, convenient hoisting and transportation, and good sealing performance;

(2) The electrical control adopts a desktop console. The main components are domestic well-known brands Chint Electric or Delixi Electric, with interlocking and secondary protection; the console is equipped with manual control operating devices, main motor current display, and finished materials Temperature display and cold aggregate, coal, asphalt frequency converter; convenient and intuitive operation.
